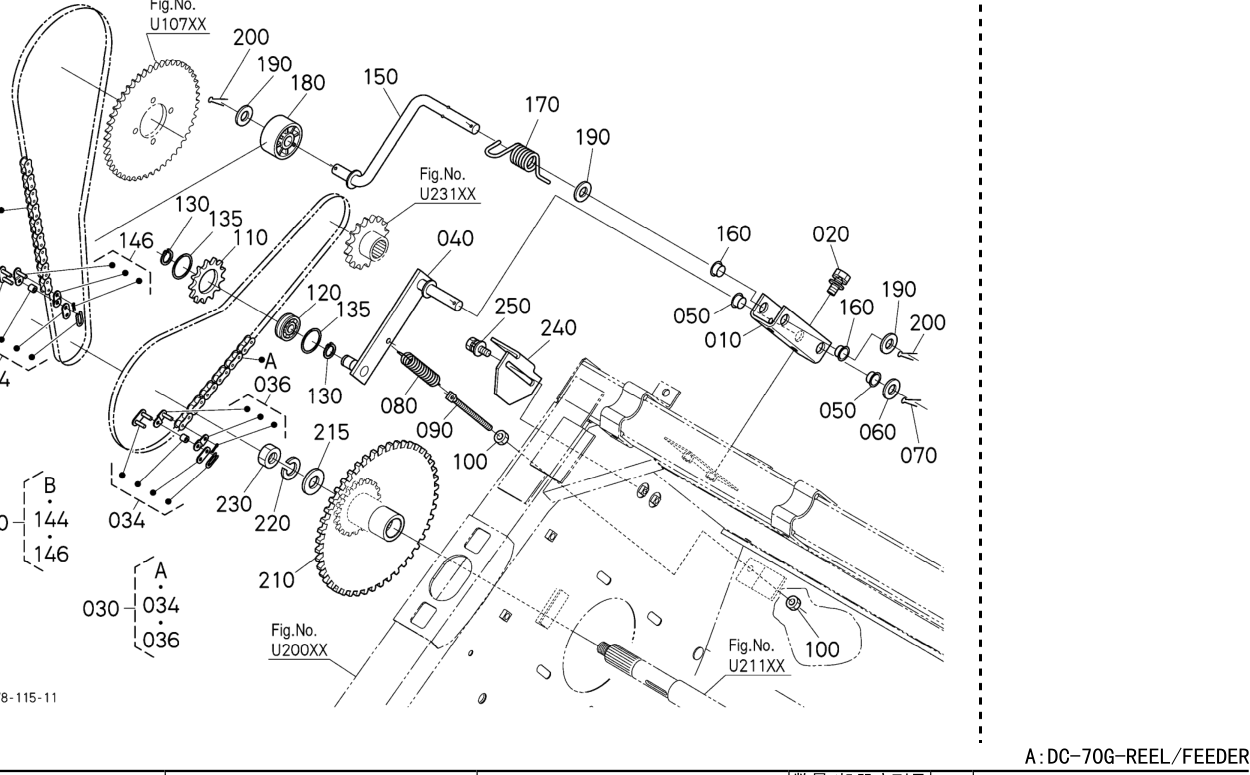

Tension Sprocket (5T072-4636-0)

Replacement part for Kubota DC70. Verify fitment by part number 5T072-4636-0 and contact us for ordering support.

SKU: 5T072-4636-0 Category: Tags: , ,

Tension Sprocket 5T072-4636-0 for Kubota DC70 Auger Drum Chain

Replacement tension sprocket for the Kubota DC70 header conveyor. The current product record identifies this component as the tension sprocket for the auger drum chain, and the DC70 catalogue lists 5T072-4636-0 in the related chain assembly.

Tension Sprocket Data

Part Number5T072-4636-0
ComponentTension Sprocket
Mounting GroupAuger drum chain tensioner
ApplicationDC70 header conveyor
BrandKubota
Selection BasisPart number, tension position and auger drum chain path

Tension Sprocket Function in the Chain Path

The tension sprocket guides and maintains tension on the auger drum chain. It is not the primary feeder drive sprocket; its purpose is to keep the chain seated correctly as the conveyor operates.

How to Distinguish It from the Drive Sprocket

Check the removed part against 5T072-4636-0, the chain path, and the tensioning position. Replacing it with a drive sprocket would be incorrect even if the parts look similar.

Verified DC70 Fitment Scope

This page is limited to the verified Kubota DC70 application. Other model numbers are not claimed here without separate evidence.

If the tension bracket or chain is also worn, inspect those components before reassembly because a new sprocket cannot correct a damaged bracket.

Tension Sprocket Wear Signs

  • Flat spots or worn tooth profiles
  • Wobble caused by a worn bore
  • Persistent chain slack after adjustment
  • Surface cracks, corrosion, or rough rotation

Ordering Information for the Tension Sprocket

Mounting: Kubota DC70 header conveyor auger drum chain tension position.

Confirmation: Confirm 5T072-4636-0 and verify that the old component is the tension sprocket, not the feeder drive sprocket.

Dimensions to match: No verified dimensions are recorded. Match the part number, chain path, and tensioning location.

Related Chain and Sprocket Parts

Tension Sprocket Questions

Does this product include the tension bracket?

No. The product record identifies the sprocket only; the bracket is not listed as included.

Why does this sprocket matter if it does not drive the chain?

It keeps the chain aligned and properly tensioned. A worn tension sprocket can cause slack, noise, or chain jumping.

Identification of 5T072-4636-0 before ordering

Use 5T072-4636-0 when the DC70 auger drum chain tension sprocket is worn or no longer keeps the chain seated. Verify the number before ordering.
