Track Roller Assembly (5T078-2310-0)

Kubota DC70 track roller assembly listed as 5T078-2310-0 at ref 010 of the track roller figure. Verify the number on the removed part before ordering.

Track Roller Assembly 5T078-2310-0

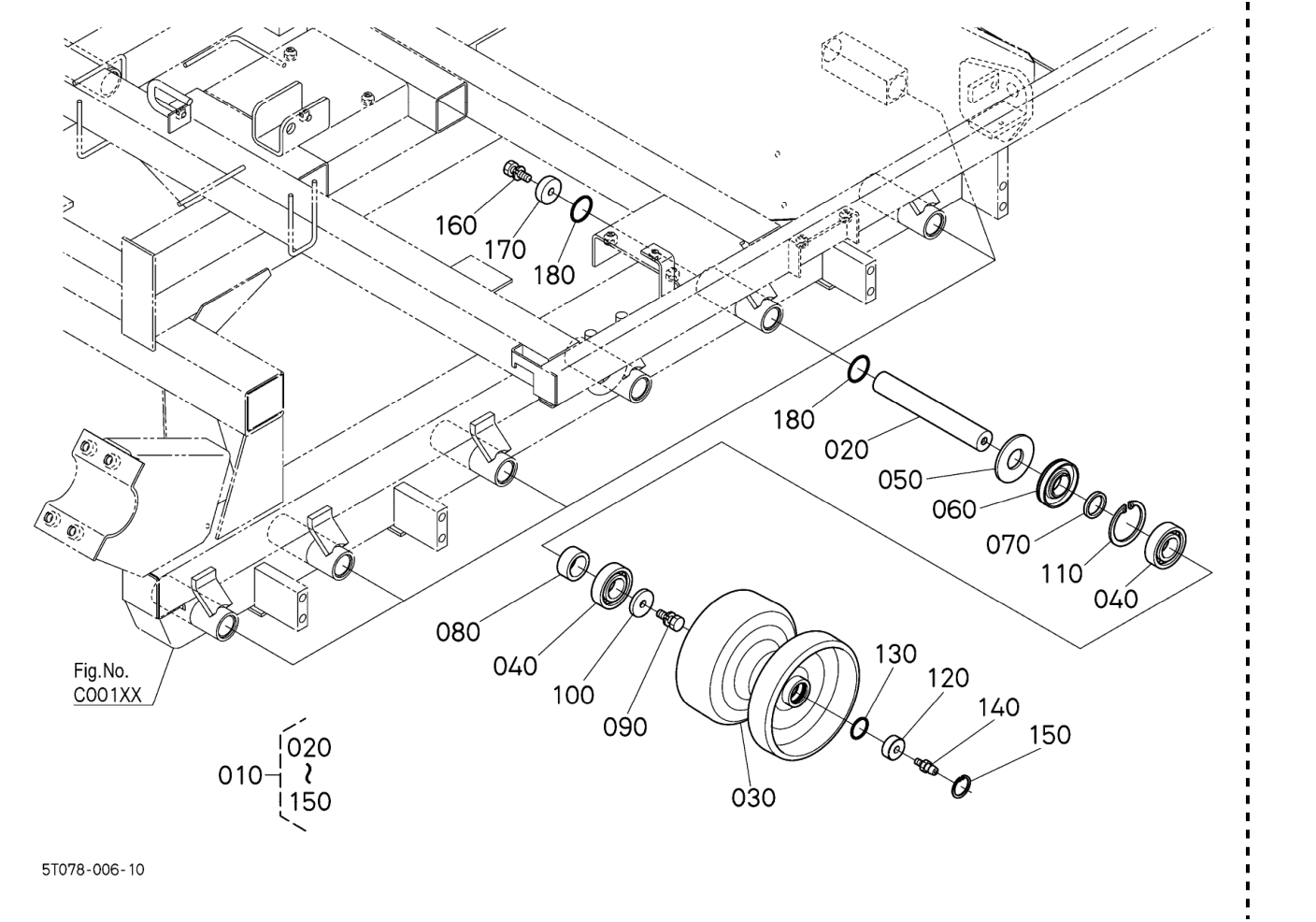

Kubota lists 5T078-2310-0 as ASSY ROLLER at reference 010 of the track roller figure, six units per side. Because the catalogue carries the whole unit on a single line, a workshop can replace a damaged roller without assembling the shaft, bearing, collar and seal stack by hand.

Catalogue data for 5T078-2310-0

Part Number5T078-2310-0
ProductTrack Roller Assembly
Catalogue NameASSY ROLLER
FigureC10101 LH and C10102 RH, p.101 and 102
Reference No.010
Q’TY per side6 units
Machine ColumnDC-70G
Assembly ContentsRoller body, shaft, bearing 08101-06206, oil seal, collars, boss cover
Workshop ChoiceComplete unit listed on one line at reference 010

A complete roller unit listed as one line

The assembly is the packaged roller: the roller body turns on the shaft through the ball bearings listed at reference 040, two collars keep the bearing set in place, the oil seal holds the grease in, and the boss cover closes the outer end. Any of those parts failing sends the whole unit out of service, which is why the figure also lists each component separately for repair work.

Wear signs on a working machine

Symptoms that lead to a roller unit: a knock under the track frame that repeats with track speed, a machine that pulls to one side, flat spots visible on the roller face, grease pushed out at the boss, mud packed around the end cap, or a roller hot enough to burn after a short run. A track that is too loose or a worn link can imitate the same noise, so the track tension and link condition are checked before the roller is condemned.

Comparison before ordering

Compare the failed unit against 5T078-2310-0 and count the rollers on the machine, because the figure gives six per side and a longer or shorter undercarriage will differ. Confirm that the mounting plate, bolt pattern and boss cover match the illustration, and decide whether a complete unit or individual components are needed by inspecting the shaft and bearing seats first.

Workshop notes

Keep the removed unit for comparison, because a rebuilt roller that keeps a scored shaft will fail again quickly. Clean the frame, check the mounting bolts and plate for cracks, and confirm the track tension setting before the machine returns to wet paddy, where loose tracks derail most often.

When the whole unit is the better repair

Bila satu unit lebih baik diganti

The chassis track category holds the rest of the DC70 undercarriage group, and these two pages cover the parts inside this unit: Track Roller (5T072-2318-0), Track Roller Shaft (5T072-2312-0).
