Track Roller (5T072-2318-0)

Kubota DC70 track roller listed as 5T072-2318-0 at ref 030 of the track roller figure. Verify the number on the removed part before ordering.

Track Roller 5T072-2318-0

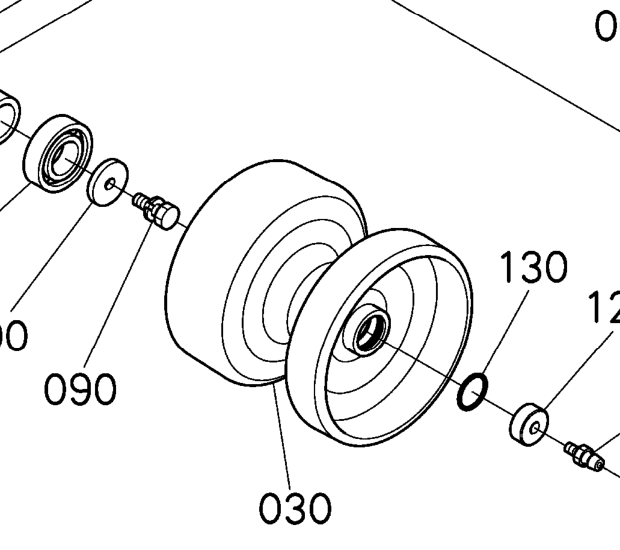

Reference 030 of the track roller figure carries 5T072-2318-0 as ROLLER, six per side. This is the rotating shell that the crawler belt runs over, sold on its own for workshops that rebuild a roller instead of replacing the complete unit.

Catalogue data for 5T072-2318-0

Part Number5T072-2318-0
ProductTrack Roller
Catalogue NameROLLER
FigureC10101 and C10102, pages 101 and 102
Reference No.030
Q’TY per side6 rollers
Machine ColumnDC-70G
Bearing Pair08101-06206, reference 040, quantity 12 per side
Repair PathBody sold separately for rebuild with existing shaft

The rotating body that carries the belt

The roller body is the wearing surface. It turns on the shaft through the two ball bearings and rides the inner face of the belt, so its outside profile guides the belt and its bore holds the bearing seats. A roller that is worn out of shape changes how the belt sits on the undercarriage, which shows up as uneven track wear rather than as an obvious breakdown.

Wear signs on a working machine

Typical wear on this part: a flat or dished face where the belt has been hammering, a grooved or polished surface, a bore worn until the bearing turns in it, cracks at the flange, or a body that has been running dry because the seal failed. Dry running is read from discolouration and from grease that has escaped around the boss cover.

Comparison before ordering

Measure the removed roller face against 5T072-2318-0 and check the bore for a loose bearing fit before ordering. If the bore has spun, a new roller alone will not fix the noise, and the shaft at reference 020 and both bearings at reference 040 are checked at the same time.

Workshop notes

Plan the repair as a set: roller, bearings, seal and cover are usually replaced together because the labour is the same. Keep the bore and bearing seats clean, fit the collar and circlip as the figure shows, and refill grease through the nipple at reference 140 rather than packing the cavity by hand.

Rebuild or replace the body

Perbaikan ulang atau ganti badan

For the shaft and seal that sit inside this body, open these pages, and the chassis track category lists the whole undercarriage: Track Roller Shaft (5T072-2312-0), Track Roller Oil Seal (5T070-2321-0).
