Track Roller Oil Seal (5T070-2321-0)

Kubota DC70 track roller oil seal listed as 5T070-2321-0 at ref 060 of the track roller figure. Verify the number on the removed part before ordering.

Track Roller Oil Seal 5T070-2321-0

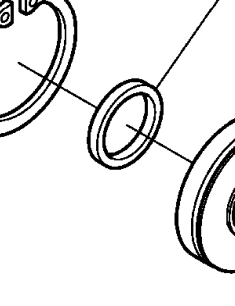

The track roller figure lists 5T070-2321-0 at reference 060 as SEAL,OIL, six per side, one for each roller. A second archived entry on this site uses 5T072-2321-0, which differs in the middle block, so the prefix is read carefully before any seal is ordered for a DC70 roller.

Catalogue data for 5T070-2321-0

Part Number5T070-2321-0
ProductTrack Roller Oil Seal
Catalogue NameSEAL,OIL
FigureC10101 plus C10102, p.101 plus 102
Reference No.060
Q’TY per side6 seals
Machine ColumnDC-70G
Neighbouring Number5T072-2321-0 appears in a separate archived entry
Held ByBoss cover 5T072-2317-2 at reference 170

One seal per roller, and the prefix matters

The seal sits between the roller body and the shaft end, keeps the bearing grease inside and keeps mud, water and paddy soil outside. In wet field work it is the part that decides how long a roller lasts, because once water enters the bearing cavity the roller fails within a few weeks of running.

Wear signs on a working machine

Failed seals show as grease pushed out around the boss cover, a wet band of mud on the roller face, a roller that runs hot after a short run, or a roller that becomes noisy when the bearings run dry. A blocked grease nipple and an over-greased cavity can both blow a good seal, so the cause is checked before the seal is blamed.

Comparison before ordering

Compare the removed seal with 5T070-2321-0 and confirm the number on the old seal itself where it is still readable. Fitting a seal from the neighbouring prefix will not hold the bore correctly even if it looks similar, and a seal that has been stored flat and distorted will leak from the first day.

Workshop notes

Fit the seal square to the bore, protect the lip from the shaft spline or keyway during assembly, and grease the lip before the roller is filled. Check the boss cover and its O-ring at the same time, because a cover that leaks makes a new seal look faulty.

Seal handling in wet fields

Penanganan seal di sawah basah

The chassis track category covers the whole undercarriage, and the cover and roller body linked here are the parts that surround this seal: Roller Boss Cover (5T072-2317-2), Track Roller (5T072-2318-0).
