Track Roller Shaft 5T072-2312-0

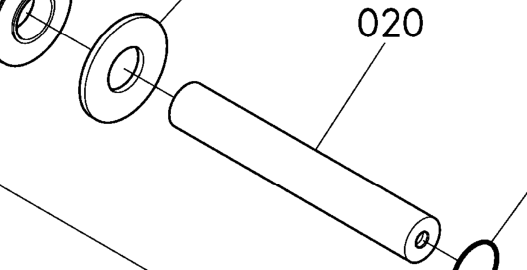

5T072-2312-0 is listed at reference 020 of the track roller figure as SHAFT,TRUCK ROLLER, six per side. The shaft does not rotate; the roller body turns on it through the bearings, and the shaft is held by the mounting plate and bolts shown in the same figure.
Catalogue data for 5T072-2312-0
| Part Number | 5T072-2312-0 |
|---|---|
| Product | Track Roller Shaft |
| Catalogue Name | SHAFT,TRUCK ROLLER |
| Figure | C10101 (101) and C10102 (102) |
| Reference No. | 020 |
| Q’TY per side | 6 shafts |
| Machine Column | DC-70G |
| Bearing Seats | Two journals, matching 08101-06206 at reference 040 |
| Also Appears In | Other DC70 figures with a different quantity |
The fixed axle the roller turns on
The shaft carries the load of the machine through the roller and sets the alignment of the whole unit. Its journals are the bearing seats, its ends locate the collars and circlips, and its centre section holds the grease passage that feeds the bearings through the nipple. A bent or worn shaft makes every part above it run out of line.
Wear signs on a working machine
Wear appears as a polished or grooved journal, a shaft that no longer holds the bearing inner ring tight, a bend that shows as a wobble in the roller body, or a crack at the mounting end after a belt derailment. A shaft that has run with a failed seal also carries rust and mud in the grease passage, which shows up as fresh grease refusing to reach the bearing.
Comparison before ordering
Check 5T072-2312-0 by rolling it on a flat surface and measuring the journals where the bearings sit, then compare the mounting end and grease passage with the illustration. The same number appears in other DC70 figures with different quantities, so the machine position decides the count, not the number alone.
Workshop notes
Replace the shaft when a journal has worn through the bearing fit, and never press a new bearing onto a grooved journal. The grease passage is cleared before assembly, because a blocked nipple is a common reason a rebuilt roller runs dry within a season.
Shaft work at the bench
Pekerjaan poros di bangku
