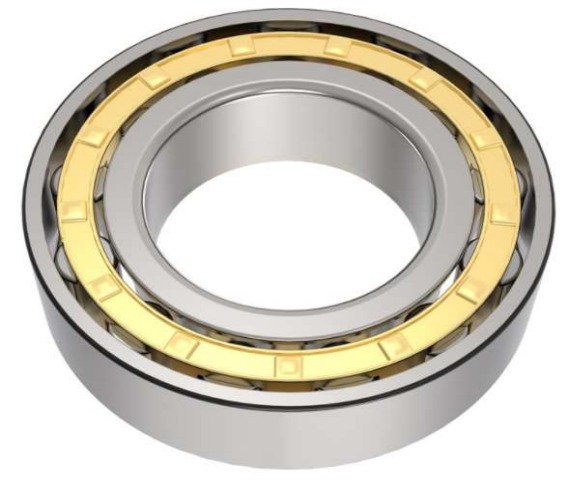

Bearing NJ305E

NJ305E single-row cylindrical roller bearing, open, with one flanged inner ring. 25 mm bore, 62 mm outside diameter, 17 mm width, 0.25 kg. Replacement for the FM WORLD 4LZ-4.0E / 4LZ-6.0P (Ruilong) combine harvester. In stock, ready to ship.

Bearing NJ305E — 25 x 62 x 17 mm for FM WORLD 4LZ-4.0E / 4LZ-6.0P (Ruilong)

The NJ305E is a cylindrical roller bearing, not a ball bearing, in a 25 x 62 x 17 mm envelope. Rollers contact the raceway along a line instead of at a point, so for the same size it carries a much higher radial load on the FM WORLD 4LZ-4.0E and 4LZ-6.0P.

Specifications

Part numberNJ305E
Typesingle-row cylindrical roller bearing, open, with one flanged inner ring
Bore diameter25 mm
Outside diameter62 mm
Width17 mm
Weight0.25 kg
FitsFM WORLD 4LZ-4.0E / 4LZ-6.0P (Ruilong)
AvailabilityIn stock, ready to ship

Bearing type and load capacity

The NJ design has a flange on one side of the inner ring, which lets the bearing locate a shaft axially in one direction while rollers still carry heavy radial load. It is the right part where a shaft must be held but the radial force is beyond what a deep groove ball bearing of the same size will take.

NJ305E against the 6305-2RS in the identical envelope

Both are 25 x 62 x 17 mm and they are not interchangeable. The 6305-2RS is a sealed deep groove ball bearing: lower radial capacity, but it tolerates axial load in both directions and needs no oil feed. The NJ305E takes far more radial load, holds the shaft in one direction only, and must be lubricated from the housing. Match the part to the job, not just to the size.

Fitting notes

This bearing is open, so it depends on the housing oil or grease supply. Confirm the feed is clear and the oil is clean before the shaft goes back in.

Before you fit it

Shaft and housing

Being an open roller bearing, this part depends on clean oil reaching it. Any grit left on the 25 mm journal will mark the rollers on the very first turn.

Signs it needs replacing

  • Roller marks or a fluted pattern on the raceway
  • A shaft that slides axially further than the flange should allow
  • Metallic grit in the housing oil
  • Heat at the housing after a short run

Compatibility and cross reference

Models covered

Supplied for both the 4LZ-4.0E and the 4LZ-6.0P under this roller bearing number.

Confirming the right part

Match the 62 mm bore and confirm the housing has an oil or grease feed. A sealed 6305-2RS shares this envelope but will not carry the same radial load.

Questions we are asked about this bearing

Can I fit a 6305-2RS where an NJ305E was used?

Only if the axial location is provided elsewhere and the radial load is within the ball bearing rating. Otherwise the shaft will move and the bearing will fail early.
