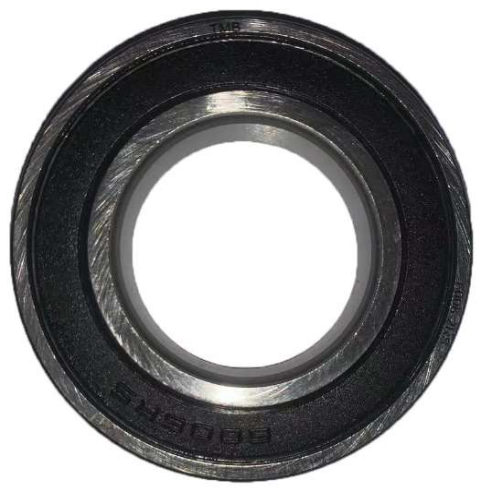

Bearing 6006-2RS (6006-2RS)

6006-2RS single-row deep groove ball bearing, rubber sealed on both sides. In-stock replacement for the FM WORLD 4LZ-4.0E. Order by part number; contact us for exact fitment.

Bearing 6006-2RS — 30 x 55 x 13 mm for FM WORLD 4LZ-4.0E Combine Harvester

The 6006-2RS pairs a 30 mm bore with a compact 55 mm outside diameter and a 13 mm width, at only 0.11 kg. On the FM WORLD 4LZ-4.0E it is the thin-section choice for a 30 mm shaft that runs fast in a narrow housing under a modest load.

Specifications

Part number6006-2RS
Typesingle-row deep groove ball bearing, rubber sealed on both sides
Bore diameter30 mm
Outside diameter55 mm
Width13 mm
Weight0.11 kg
FitsFM WORLD 4LZ-4.0E Combine Harvester
AvailabilityIn stock, ready to ship

Bearing type and load capacity

The 60 family is the lightest of the deep groove families: same bore, smaller envelope and lower friction than the 62 or 63 series. That keeps a fast shaft cool and saves space, with the trade-off written into the design as a lower load rating rather than as a weakness in the part.

6006-2RS against the 6306 on the same 30 mm shaft

The 6306 is a heavy 30 x 72 x 19 mm bearing. They share the journal but little else: the 6006 saves 17 mm of outside diameter and 6 mm of width where the load is light and the housing is tight. A 72 mm bore points to the 6306, while a 55 mm bore leaves no room for anything but the 6006.

Fitting notes

Thin rings distort under uneven force, so use a sleeve on the inner ring and keep the press square. A pinched 6006 will run noisy even before it meets any load.

Before you fit it

Shaft and housing

Inspect the narrow housing shoulder so it does not ride on the seal lip. Even a small contact point grinds a path for dust into a greased-for-life bearing.

Signs it needs replacing

  • High-pitched whine at speed rather than a low rumble
  • A seal lip pushed sideways in its groove
  • Notchy rotation when the inner ring is turned slowly
  • A faint wear step on the 30 mm journal

Compatibility and cross reference

Models covered

This sealed 6006 is the part listed for light, fast 30 mm positions on the FM WORLD 4LZ-4.0E.

Confirming the right part

Match the old number and the 55 mm bore. A 72 mm measurement identifies the heavier 6306 instead.

Questions we are asked about this part

Is the 6006 a downgrade from a 6306?

Not where the load is genuinely light. It is a smaller, cooler part for a 55 mm housing; it simply cannot replace a 6306 in a heavy, 72 mm bore position.
