Front Concave Screen Weld (W2.5-02G-01-04A-00)

Part W2.5-02G-01-04A-00. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

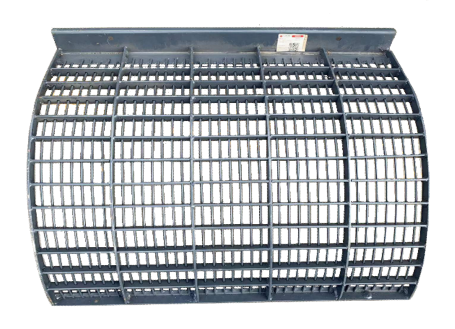

Front Concave Grate (755 mm) for FM WORLD 4LZ-6.0P

As the entry half of the concave, this 755 x 630 x 130 mm grate at 14.4 kg is where the cylinder first pulls the crop in and threshing starts.

Grate measurements

Drawing numberW2.5-02G-01-04A-00
ComponentWelded front concave grate
Envelope755 x 630 x 130 mm
Mass14.4 kg
MachineFM WORLD 4LZ-6.0P (Ruilong)

Taking the first crop

Because the crop hits this grate first, it has to hold the grate firm against the drum while the initial rubbing releases the grain.

Entry grate versus the rear

Reading the position matters: this is the entry grate, not the rear discharge grate, and even with matching envelopes the mountings place them at opposite ends.

Locating the grate

Drop the grate onto the front seats and bring the bars into line, then read the cylinder clearance at the entry.

Turn the cylinder and confirm there is no rub where the crop enters, then watch the feed spread across the grate.

Why it would be scrapped

  • Grate bars bent under the first impact
  • Opened welds on the frame
  • Seats worn loose
  • A seam where the two grates meet
  • Marks left by the cylinder
  • Rust across the frame

Before you order

Mounting: Entry concave grate of FM WORLD 4LZ-6.0P (Ruilong) harvesters.

Confirmation: Send the drawing number and the 755 mm envelope and note the front fit.

Dimensions to match: Measure the old grate and its seats and compare them against this part.

Rear grate and the cleaning sieves

Questions from buyers

Will it seat at the rear?

It will not; the envelope matches but the entry mountings are specific.

Does this grate see the hardest wear?

It takes the first impact, so it is worth a close look at every service.

Identification of W2.5-02G-01-04A-00 before ordering

Order this grate only for bent bars, opened welds or worn seats; a firm entry grate should be kept.
