Crawler Guide Front Idler (5T072-2341-2)

Kubota DC70 crawler guide front idler listed as 5T072-2341-2 at reference 010. Check the old part against the catalogue entry before ordering.

Crawler Guide Front Idler 5T072-2341-2

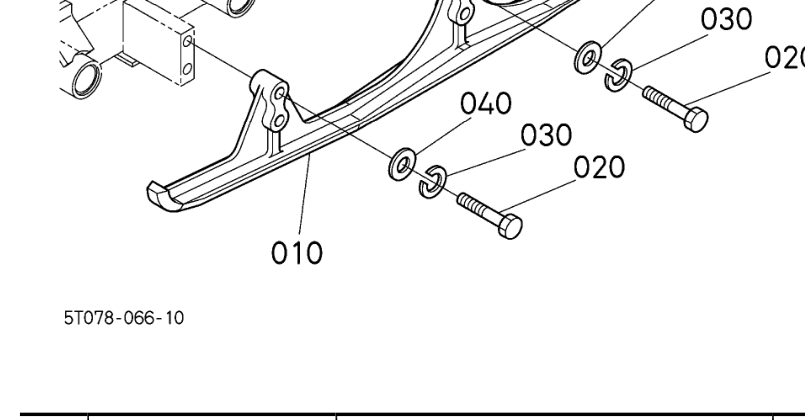

5T072-2341-2 is listed at reference 010 of the crawler guide figure as GUIDE,CRAWLER FRONT, one per side. The same figure carries four hex bolts 01173-51260 with spring washers 04512-60120 and plain washers 04011-50120, so the front position is a four-bolt mount while the rear guide in the same figure uses two.

Catalogue entry for 5T072-2341-2

Part Number5T072-2341-2
ProductCrawler Guide Front Idler
Catalogue NameGUIDE,CRAWLER FRONT
FigureC10401 LH and C10402 RH, p.105-106
Reference No.010
Q’TY per side1 guide per side
Machine ColumnDC-70G series
SystemTrack frame guide / undercarriage

The nose guide, with four bolts per side

The front guide sits at the nose of the track frame and turns the belt as it comes off the front of the undercarriage. It holds the track in line before it reaches the drive end, and takes the side load when the machine turns in soft ground. Its mounting bolts also set the alignment of the track run, so a loose or worn front guide is felt as a belt that climbs to one side.

Wear and failure signs

Wear appears as a flat spot or a groove on the guide face, a guide that no longer turns freely, a bush worn so the guide rocks on its pin, cracks around the bolt holes, and a mounting that has been pushed sideways after an impact. Mud packed behind the guide can imitate a seized bearing, so the area is cleaned before the guide is condemned.

How to confirm the right part

Match 5T072-2341-2 against the removed guide by its face profile, pin and bolt pattern, and confirm the four-bolt mounting of the front position rather than the two-bolt rear pattern. If the frame holes are elongated, the bolts are replaced as well, because a guide that moves on its mount will wear out again in a short season.

Inspection while the track is loose

Release track tension before the guide is removed, and support the frame so the belt does not drop onto the guide pin. Check the other guide on the same machine at the same time, because a pair worn to different depths steers the track and loads the drive side unevenly.

For the rear position and the belt this guide steers, open these pages, and the chassis track category covers the rest: Crawler Guide Rear Idler (5T072-2342-3), Rubber Crawler Track (5T076-2312-0).
