Crawler Guide Rear Idler (5T072-2342-3)

Kubota DC70 crawler guide rear idler listed as 5T072-2342-3 at reference 050. Check the old part against the catalogue entry before ordering.

Crawler Guide Rear Idler 5T072-2342-3

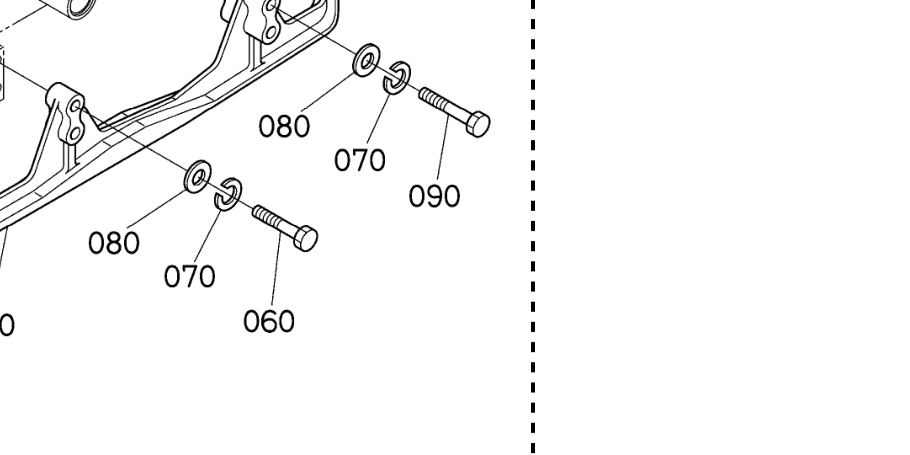

Reference 050 of the crawler guide figure carries 5T072-2342-3 as GUIDE,CRAWLER REAR, one per side, with two hex bolts 01173-51260 and matching spring and plain washers. It shares the figure with the front guide but not the fastener count, which is the quickest way to tell the two apart on a machine before dismantling.

Catalogue entry for 5T072-2342-3

Part Number5T072-2342-3
ProductCrawler Guide Rear Idler
Catalogue NameGUIDE,CRAWLER REAR
FigureC10401 and C10402, sheet 105 plus 106
Reference No.050
Q’TY per side1 rear guide per side
Machine ColumnDC-70G column
SystemTrack frame guide / running gear

The rear position, built on a two-bolt mount

The rear guide turns the belt as it leaves the back of the frame and keeps the return run aligned on the last section of undercarriage. Because the drive end and the tension frame both act on the rear area, this guide sees the belt move slightly as tension changes, and a worn face here shows up as belt polish on one side of the guide.

Wear and failure signs

Signs of a worn rear guide: a polished or stepped face, a guide that has stopped turning, a bush worn through so the guide drops on the pin, cracks at the two bolt holes, or a mount that has been hammered out of shape by stones. A worn tension frame also loads this guide, so the frame is checked when the guide is replaced.

How to confirm the right part

Compare 5T072-2342-3 with the removed part by face profile, pin size and the two-bolt pattern, and confirm the number on the guide where it is still readable. The front and rear guides look alike from a distance, and fitting the four-bolt front part to the rear mount is not possible, which is why the reference number and bolt count are both checked.

Pairing with the front guide

Replace both guides as a pair when either face is badly stepped, then set track tension and run the machine straight before turning. Listening for the earlier rumble on a straight run tells whether the guides were the source, before the machine goes back into wet paddy.

Open the chassis track category for the complete running gear list, and the front guide and track pages linked here complete this pair: Crawler Guide Front Idler (5T072-2341-2), Rubber Crawler Track (5T076-2312-0).
