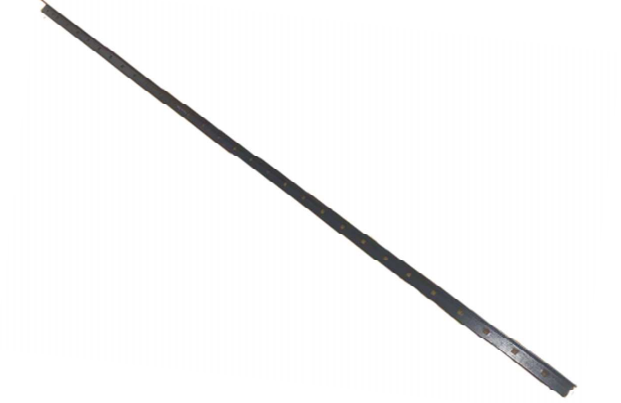

Fixed Knife Bar W2.5E-01XC-01-03-02 — 2305 x 40 x 40 mm
This is the fixed knife bar for the FM WORLD 4LZ-4.0E cutter bar, a 2305 mm steel beam at 6 kg. It is the rigid reference the moving sickle and wear surfaces align to, not a cutting part itself. Keeping the beam straight holds the register even along this slightly shorter header.
Specifications
| Part number | W2.5E-01XC-01-03-02 |
|---|---|
| Type | Fixed knife bar (knife back beam) |
| Length x section | 2305 x 40 x 40 mm |
| Weight | 6 kg |
| Fits | FM WORLD 4LZ-4.0E Combine Harvester |
| Availability | In stock, ready to ship |
What this part does
Think of this part as the fixed backbone of the 4.0E cutting unit. Both the ledger plates and the moving sickle take their height from it, so any twist along the 2305 mm span throws the blades out of level and leaves a ragged line. Guides cannot compensate once the backbone itself is out of true; the cut is only as straight as this beam.
The 4.0E 2305 mm beam against the 6.0P 2405 mm beam
Order this 1599 beam for the 4.0E machine: it runs 2305 mm and weighs 6 kg. The 2312 beam is 100 mm longer and 0.6 kg heavier because it belongs to the 6.0P header. Since the two header widths differ, the beams cannot be swapped, and length is the quickest check before ordering.
Fitting notes
Set the beam onto its seats and use a straight edge along the 2305 mm length before the sickle and guards go back. The seats themselves must be clean and flat, because this is a locating part rather than a sliding one; the moving knife and its wear pieces follow the lubrication points listed in the service manual.
Before you fit it
Run a finger over each seat before refitting, since a pitted or hollowed seat will keep the beam proud even when it is new.
Signs it needs replacing
- A twist or bend that shows as a ragged cut on one side of the header
- Fretted seats that stop the beam bedding down square
- Blades losing register partway along the 2305 mm span
- A crack opening at a mounting lug rather than a worn edge
Compatibility and cross reference
Models covered
Built for the FM WORLD 4LZ-4.0E cutter bar; check the machine and the header width against W2.5E-01XC-01-03-02.
Confirming the right part
Read 2305 mm on the old beam and match the number W2.5E-01XC-01-03-02; anything closer to 2405 mm points to the 6.0P beam.
Reading the old part
2305 mm overall, 40 x 40 mm section, 6 kg. Against the 2405 mm and 2550 mm bars in this family it is the shortest of the three, so measure before fitting: a bar 100 mm too long will bolt on at one end and leave the knife running off its guides.
Questions we are asked about this part
Is this beam specific to the 4.0E header?
Yes. It is the 2305 mm beam for the 4LZ-4.0E; the 6.0P header uses the longer 2405 mm beam, so confirm the machine and length before ordering.
