Cutter Bar Friction Plate (W2.0-01-01-03G-06)

cutter bar friction (wear) plate. In-stock replacement for the FM WORLD header. Order by part number; contact us for exact fitment.

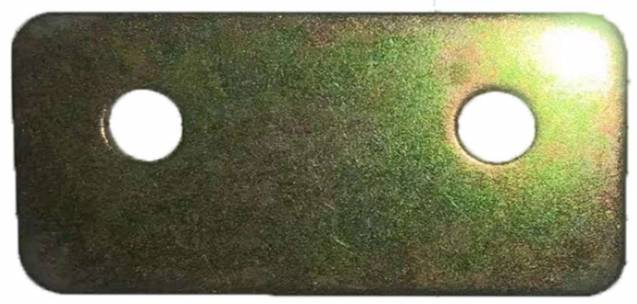

Cutter Bar Friction Plate W2.0-01-01-03G-06 — 70 x 35 x 2 mm

This is a thin hardened steel plate that sits under the reciprocating knife on the FM WORLD 4LZ-4.0E cutter bar. At 70 mm long and only 2 mm thick it gives the knife back a smooth, hard surface to slide on, so the moving sections stay supported and aligned instead of rubbing directly into the bar frame. It is a small part, but a worn one is what lets the knife tip and cut ragged.

Specifications

Part numberW2.0-01-01-03G-06
TypeCutter bar friction (wear) plate
Length x width x thickness70 x 35 x 2 mm
Weight0.06 kg
FitsFM WORLD 4LZ-4.0E Combine Harvester
AvailabilityIn stock, ready to ship

What this part does

The friction plate is a sacrificial wear surface. The knife back travels back and forth over it thousands of times per minute, so the plate is made harder than the frame it protects and is designed to be replaced rather than re-machined. Keeping it at full thickness holds the knife sections level with the guard ledger plates, which is what produces a clean scissors cut.

The 70 mm plate against the longer 105 mm plate on the same cutter bar

This 03G-06 plate is 70 mm long and weighs 0.06 kg, while the 03G-08 friction plate is 105 mm and 0.09 kg. They are not interchangeable: each position on the bar is machined and bolted for one length, and the bolt holes will not line up if the wrong size is fitted. Count the positions and order each length the bar actually calls for.

Fitting notes

Clean the mounting face fully so the plate sits flat with no chaff trapped under it, then seat the plate and secure its fastener. Cutter bars differ in how they are lubricated, so follow the lubrication schedule in your machine’s service manual rather than applying grease on your own; on a dusty header, excess lubricant left on the sliding face can trap grit and act as an abrasive.

Before you fit it

Inspect the frame under the old plate for a worn or pitted recess before the new one goes in. If the frame itself is hollowed, fitting a new plate on top will not restore the knife height and the frame needs repair first.

Signs it needs replacing

  • A groove or hollow worn into the plate where the knife back rides
  • Knife sections tipping up and leaving uncut or torn stalks
  • Visible thinning of the 2 mm plate or a cracked edge
  • Adjustment on the bar fully taken up with no more lift available

Compatibility and cross reference

Models covered

Listed for the FM WORLD 4LZ-4.0E cutter bar; confirm against the 70 mm position and the part number on the old plate.

Confirming the right part

Measure the old plate at 70 mm and match the number W2.0-01-01-03G-06. A 105 mm reading means that position takes the 03G-08 plate, not this one.

Reading the old part

Seventy millimetres long, 35 mm wide, 2 mm thick, 0.06 kg. The plate it gets confused with is the 105 mm one carrying the …-08 number, and both sit on the same cutter bar. Lay the old plate on the new one: a worn plate is thinner at the leading edge, and that taper is what produces the slack the knife feels.

Questions we are asked about this part

Do I need to replace the whole cutter bar when this plate wears?

No. The friction plate is a separate bolt-on part; once the mounting face is clean and undamaged, fit a new plate and re-check the knife register.
