Cleaning Blade (W2.0-01-01-03-03-03)

cleaning blade (scraper plate). In-stock replacement for the FM WORLD header. Order by part number; contact us for exact fitment.

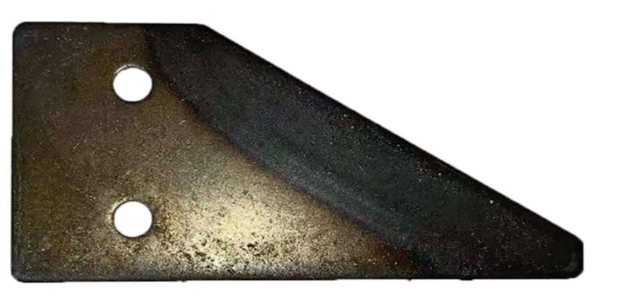

Cleaning Blade W2.0-01-01-03-03-03 — 85 x 42 x 2 mm

This small 85 x 42 x 2 mm plate is a scraper on the FM WORLD 4LZ-4.0E cutting and cleaning area. It rides against a moving surface and clears away chaff and wrap so material cannot build up and drag on the drive. At only 0.04 kg it is a light, replaceable wear blade kept in place by its own fasteners.

Specifications

Part numberW2.0-01-01-03-03-03
TypeCleaning blade (scraper plate)
Length x width x thickness85 x 42 x 2 mm
Weight0.04 kg
FitsFM WORLD 4LZ-4.0E Combine Harvester
AvailabilityIn stock, ready to ship

What this part does

A cleaning blade works by maintaining a controlled edge against a rotating or reciprocating surface. The edge does not cut crop; it scrapes off residue before it can pack into a seal or wind around a shaft. Once the edge wears back and loses contact, material starts to accumulate and the blade has done its service life.

Cleaning scraper versus the cutter bar friction plates

Both are 2 mm hardened steel, but the friction plates support the knife from underneath and stay flat, while this cleaning blade presents an edge that scrapes a moving surface. They are not interchangeable: a flat support plate cannot scrape, and the scraper is not built to carry the knife load.

Fitting notes

Clean the mounting face and seat the blade so its edge contacts the moving surface evenly across its width. The blade is located for a set clearance rather than being forced hard against the surface, which would only wear both parts rapidly. Follow the service manual for any lubrication points.

Before you fit it

Check the surface the scraper runs against is smooth and not itself grooved. A damaged drum will wear a new blade quickly no matter how it is set.

Signs it needs replacing

  • The scraping edge worn back until it no longer contacts the surface
  • Chaff and wrap building up where the blade should be clearing
  • Bent or cracked plate from a stone or heavy slug of material
  • Elongated mounting holes that let the blade lose its set position

Compatibility and cross reference

Models covered

Listed for the FM WORLD 4LZ-4.0E; confirm the 85 x 42 mm position and part number before ordering.

Confirming the right part

Match the number W2.0-01-01-03-03-03 and the 85 mm length. This is a scraper, not a cutter bar knife section.

Reading the old part

At 85 x 42 x 2 mm and 0.04 kg this is one of the smallest parts in the cleaning shoe, and it is the one most often lost during a rebuild. Measure the 85 mm length: a scraper that has worn its working edge away has usually lost two or three millimetres of length as well.

Questions we are asked about this part

How do I know the scraper needs replacing rather than re-adjusting?

If the edge is still present, re-setting its clearance can restore contact. Once the edge is worn away or the plate is bent, adjustment cannot bring it back and the blade should be replaced.
