Charge Spring (WHST40-02-3)

Part WHST40-02-3. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

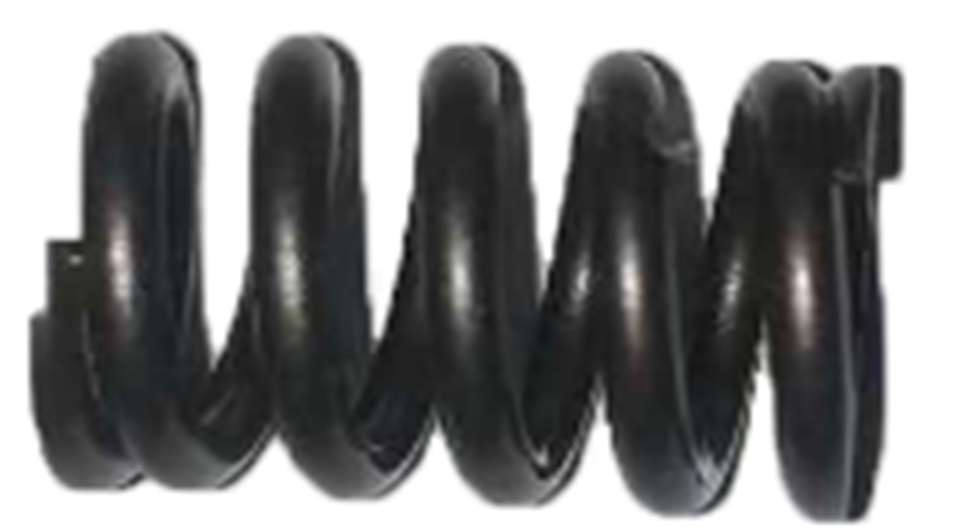

HST Charge Spring (18 x 12 mm) for FM WORLD 4LZ-6.0P

This 0.01 kg charge spring, 18 mm long with a 12 mm diameter, holds the make-up valve closed to keep the charging pressure stable.

Charge spring dimensions

Drawing numberWHST40-02-3
ComponentCharge spring
Reference dimensions18 x Phi12 mm
Set contents1 piece
Mass0.01 kg
MachineFM WORLD 4LZ-6.0P (Ruilong)

Holding charge pressure

The charge spring keeps the make-up valve seated so the charge pump can refill the closed circuit and stop it from cavitating.

Charge versus relief spring

The relief spring is longer and guards overpressure, whereas this shorter spring maintains the charge side.

Installing the charge spring

Seat the spring in its recess, confirm it is not twisted, and reassemble the valve with clean parts.

Run the HST and confirm steady drive with no noise that suggests the charge side is failing.

Spring fatigue signs

  • Spring weakened or collapsed
  • Loss of tension with age
  • Corrosion or pitting
  • Broken coil
  • Charge pressure falling
  • Distorted seating

Checks before ordering

Mounting: Charge spring of the 40-series HST on FM WORLD 4LZ-6.0P (Ruilong).

Confirmation: Quote the drawing number and note the single-piece 18 x Phi12 spring.

Dimensions to match: Match the free length and coil diameter to the removed spring.

Stem and relief spring

Buyer questions

What is charge pressure for?

It refills the closed circuit so the pump does not draw in air.

How does a spring fail?

It loses tension or breaks, letting the charge valve open too early.

Identification of WHST40-02-3 before ordering

Replace this spring when it is weak, broken or charge pressure is falling; settings stay per the service manual.
