Cylinder, Header (W3.5-05-02-00M)

Part W3.5-05-02-00M. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

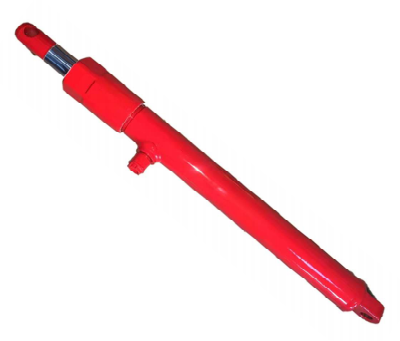

Header Hydraulic Cylinder (550 mm, Slim) for FM WORLD 4LZ-6.0P

At 5.4 kg with a 45 mm barrel and 28 mm rod, this slimmer cylinder lifts the header and keeps it from drifting down.

Cylinder reference dimensions

Drawing numberW3.5-05-02-00M
ComponentHeader hydraulic cylinder
Overall length550 mm
Barrel outer diameter45 mm
Rod diameter28 mm
Mass5.4 kg
MachineFM WORLD 4LZ-6.0P (Ruilong)

Raising and holding the header

The smaller cylinder also lifts the header and keeps it at the chosen height while the machine works.

Smaller versus larger header cylinder

Compared with the larger header cylinder, this one has a 45 mm barrel and 28 mm rod; the two are not interchangeable.

Fitting the smaller cylinder

Offer the slimmer cylinder to the brackets, insert the pins, and attach the hoses with the ports kept clean.

Lift the header through its full travel and hold it to check for slow sinking.

Replacement warning signs

  • Oil film or drips on the piston rod
  • Chrome on the rod peeling or rusted
  • Header drifting down under its own weight
  • Mounting holes enlarged at the pins
  • Seal kit aged and leaking
  • Tube bent or knocked

What to verify first

Mounting: Header cylinder of FM WORLD 4LZ-6.0P (Ruilong) harvesters.

Confirmation: Quote the drawing number and the 550 mm length together with the 28 mm rod.

Dimensions to match: Check the 45 mm barrel and 28 mm rod against your removed part.

The larger header and unloading cylinders

Common buyer questions

Is it the larger header cylinder?

No, it is the slimmer one with the 28 mm rod.

Can the two header cylinders be swapped?

No, the barrel and rod sizes differ.

Identification of W3.5-05-02-00M before ordering

Replace the slimmer cylinder for leaking seals, a scored rod or a header that sinks; a serviceable one need not be changed.

Request a Quote Now
