Horizontal Auger Weld,Grain (W2.5A-02B-02-10-02-00)

horizontal grain auger weld. In-stock replacement for the FM WORLD harvester. Order by part number; contact us for exact fitment.

Horizontal Grain Auger W2.5A-02B-02-10-02-00 — 1215 mm, 8.1 kg

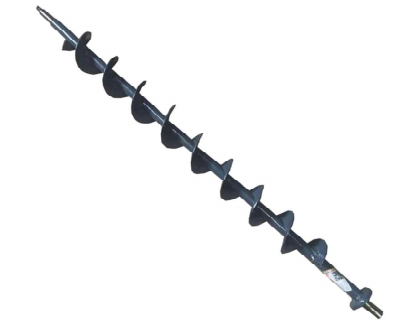

This is the horizontal auger that moves clean grain across the lower frame toward the vertical elevator on the FM WORLD 4LZ-6.0P Ruilong. It is 1215 mm long and 115 mm high, with a stepped shaft — 20 mm at the upper journal, 30 mm in the middle and 25 mm at the lower — and a flight welded around the tube. It is the first conveyor in the clean-grain path after the grain falls through the cleaning sieves.

Specifications

Part numberW2.5A-02B-02-10-02-00
TypeHorizontal grain auger weld
Overall length1215 mm
Height115 mm
Shaft journals (upper/mid/lower)20 / 30 / 25 mm
Weight8.1 kg
FitsFM WORLD 4LZ-6.0P (Ruilong) Combine Harvester
AvailabilityIn stock, ready to ship

What this auger does

This auger sees clean but abrasive grain moving steadily along a trough, so the flight outer edge wears in a smooth, even pattern. Once the edge clearance opens, the auger conveys less grain per turn and the clean-grain stream slows, which can bottleneck the whole elevator even though the vertical auger is fine. The stepped journal sizes are a useful check that the correct part has been supplied.

The horizontal grain auger against the horizontal impurity auger

Both are horizontal and sit near the cleaning shoe, but this 2374 auger carries clean grain and has a stepped 20/30/25 mm shaft, while the 2378 impurity auger moves chaff and tailings with a single 25 mm shaft and a wider 170 mm flight. They are not interchangeable and feed different paths.

Fitting notes

Lay the weldment in a clean trough, taking care the stepped journals face the correct way, and keep the mounts slack. Give the 1215 mm tube several manual rotations, checking the helix holds a steady gap for its full span before anything is locked. When the drive is reconnected, the turning sense should carry grain toward the elevator rather than away. The bearings get oil on the manual’s schedule; no lubricant is applied to the working helix.

Before you fit it

Inspect the trough bottom and the drive pulley, since a worn trough or slipping belt drive can produce the same slow flow.

Signs it needs replacing

  • Evenly worn flight edges opening the clearance to the trough
  • Clean-grain flow slowing or bottlenecking at the elevator entrance
  • A bowed tube or flight touching the trough on one side
  • Journal or bearing wear at the stepped seats causing noise

Compatibility and cross reference

Models covered

Listed for the FM WORLD 4LZ-6.0P Ruilong; confirm the 1215 mm length and stepped 20/30/25 mm journals.

Confirming the right part

Match W2.5A-02B-02-10-02-00 and the stepped journal sizes. A single 25 mm shaft indicates the impurity auger, not this part.

Reading the old part

1215 mm long, 115 mm high, with 20 / 30 / 25 mm journals at upper, middle and lower positions, 8.1 kg. Three different journal sizes on one shaft means the shaft can only go in one way; if it will not seat at all, it is being offered up the wrong end.

Questions we are asked about this auger

The vertical elevator is fine, but grain arrives slowly. What is wrong?

The horizontal grain auger feeding it may have worn flight edges, so it pushes less grain per turn. Check the edge clearance along the trough before looking at the elevator.
