Tension Pulley Combination (W2.5K-02HB-56-28A-01-00)

Part W2.5K-02HB-56-28A-01-00. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

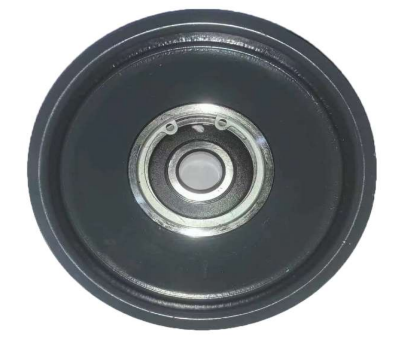

Tension Pulley Combination (125 mm) for FM WORLD 4LZ-6.0P

This combined tensioner keeps a drive belt in the threshing and cleaning system at the correct tension. It is built around a 125 mm pulley with a 35 mm body and weighs 0.8 kg, fitted as a complete combination.

Combination dimensions

Part numberW2.5K-02HB-56-28A-01-00
Part typeTension pulley combination
Pulley diameter125 mm
Body size35 mm
Weight0.8 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)

Role in the threshing drive

The pulley maintains even pressure on the belt so the threshing and cleaning components keep their timing under load. Supplied as a combination, it carries the bracket and pulley together.

Telling the tensioners apart

At 125 mm this tensioner is larger than the 70 mm reel idler and serves a different belt run; match the part number to the threshing drive rather than the header reel.

Installing the combination

Mount the complete combination on its bracket and confirm the pulley meets the belt square and turns freely. Check the fixing points are secure before setting tension.

Bring the belt to the service-manual deflection, then look again after a brief run for any belt walk across the groove.

When it is replaced

  • A seized or notched pulley that drags the belt
  • Play in the combination that lets tension fade
  • A worn or polished groove
  • Belt squeal or flutter on the threshing drive
  • Distorted mounting points
  • Corrosion on the pulley face

How to order

Mounting: Belt tensioner for the threshing and cleaning train of FM WORLD 4LZ-6.0P (Ruilong) machines.

Confirmation: Send the part number and the 125 mm measurement and we verify the combination is the right one.

Dimensions to match: Verify the pulley diameter, body size and mounting layout against your removed unit.

Related drive and idler parts

Common questions

Is this the same tensioner as the reel idler?

No, it is a larger 125 mm combination on the threshing drive; the reel idler is a separate 70 mm part.

What is included in the combination?

The pulley and its mounting bracket are supplied together, so it bolts on as one unit.

Identification of W2.5K-02HB-56-28A-01-00 before ordering

Replace this combination when the pulley seizes, the mount loses tension or the groove is worn; a free-running unit that holds the belt square can remain.
