Housing Weld, Re-threshing (W3.5H-02HB-11-03-01-00)

Part W3.5H-02HB-11-03-01-00. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

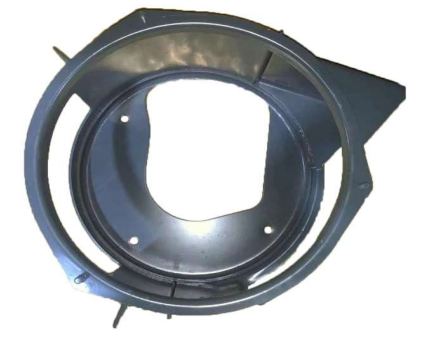

Welded Re-Threshing Housing (335 mm) for FM WORLD 4LZ-6.0P

This small welded housing surrounds the secondary re-threshing cylinder, 335 mm wide and 275 mm across on a 250 mm bore, 140 mm high and 3.5 kg.

Housing dimensions

Part numberW3.5H-02HB-11-03-01-00
Part typeWelded re-threshing housing
Width335 mm
Outer / bore275 / 250 mm
Height140 mm
Weight3.5 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)

Housing the re-thresher

The housing encloses the small re-threshing cylinder that catches unthreshed material and returns it, keeping that secondary crop contained and guided.

Re-thresher versus the main cylinder

It is much smaller than the main 620 mm cylinder housing because it only handles the returned tailings, not the full crop flow.

Fitting the housing

Offer the housing over the re-threshing cylinder and align its faces, then bolt it and confirm the small cylinder turns clear.

Run the re-thresher and check for a rub or a gap, confirming the housing stays secure.

Replacement signs

  • A deformed or cracked housing
  • Worn mounting faces
  • A gap that lets tailings escape
  • Rubbing from the small cylinder
  • Rust on the weld
  • Loose mounting points

Ordering details

Mounting: Re-threshing cylinder housing on FM WORLD 4LZ-6.0P (Ruilong) combine harvesters.

Confirmation: Quote the part number and the 335 mm and 275 mm measurements.

Dimensions to match: Check the width, bore and height against your removed housing.

Main threshing parts

Buyer questions

What is the re-thresher?

A secondary cylinder that re-processes unthreshed material returned from the cleaning shoe.

Does the small cylinder come with it?

No, the housing is the enclosure; the re-threshing cylinder is separate.

Identification of W3.5H-02HB-11-03-01-00 before ordering

Replace this small housing when it deforms, cracks or wears its faces; a sound housing that contains the tailings can stay.
