Impurity Auger Weld W3.5H-02-11-01-07-00 — 935 mm, 5.9 kg

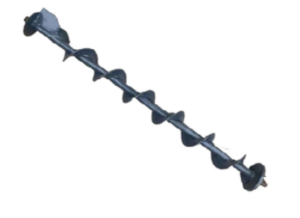

This is the welded auger that carries the light impurity fraction — chaff, short straw and tailings — away from the cleaning system on the FM WORLD 4LZ-4.0E. A continuous helical flight is welded around a central tube and turns inside a trough, moving the material sideways for re-threshing or discharge rather than letting it build up under the sieves. It is a complete weldment, not a flighting kit, so it arrives ready to fit between its bearings.
Specifications
| Part number | W3.5H-02-11-01-07-00 |
|---|---|
| Type | Impurity return auger weld |
| Overall length | 935 mm |
| Flight width | 117 mm |
| Outer / shaft diameter | 95 mm / 25 mm |
| Weight | 5.9 kg |
| Fits | FM WORLD 4LZ-4.0E Combine Harvester |
| Availability | In stock, ready to ship |
What this auger does
The impurity auger handles an abrasive, dust-heavy load, so the outer edge of the flight is where wear shows first. As that edge thins, the gap between flight and trough widens and more material is carried over instead of pushed along, which shows up as chaff backing up under the sieves. The weld is a rigid assembly: the flight, tube and end journals are replaced together rather than re-built in the field.
The 4.0E impurity auger against the 6.0P horizontal impurity auger
This 935 mm, 5.9 kg auger is built for the 4.0E cleaning frame, while the 2378 horizontal impurity auger is longer at 1110 mm and heavier at 8.2 kg to match the wider 6.0P machine. They do the same job but are not interchangeable: the journal centres and flight width differ, so a part from one frame will not seat in the other’s bearings.
Fitting notes
Before the auger goes in, brush every trace of chaff from the trough and the bearing bores. Rest the weldment in place and keep its fasteners finger-tight while the drive is hooked back up, so the shaft can settle into a true running position. Once connected, give the tube a full spin by hand and watch the flight pass the trough at every point; an even gap with no binding is the signal to tighten the mounts. Any oil belongs on the bearings and drive points named in the manual, never on the flight, where it would glue dust into an abrasive paste.
Before you fit it
Before condemning the auger, check the trough itself for a worn or pin-holed bottom curve. If the trough is hollowed, a new auger alone will not restore clean conveying.
Signs it needs replacing
- The flight outer edge worn thin or rounded, with a wide gap to the trough
- Chaff and tailings backing up under the sieves instead of moving across
- A bent tube or flight scraping the trough on one side only
- Worn or scored end journals making the auger run noisy in its bearings
Compatibility and cross reference
Models covered
Listed for the FM WORLD 4LZ-4.0E; confirm the 935 mm length and 25 mm shaft against the old part before ordering.
Confirming the right part
Match the number W3.5H-02-11-01-07-00 and the 935 mm length. A reading of 1110 mm points to the 6.0P 2378 auger, not this one.
Reading the old part
935 mm overall with a 117 mm flight width and 95 / 25 mm outer and shaft diameters, 5.9 kg. A return auger can be straightened and still turn, so check the flight against a straight edge along its length: a flight bent at one point feeds unevenly even when the shaft runs true.
Questions we are asked about this auger
Can I replace just the worn flighting instead of the whole weld?
This part is supplied as a welded tube-and-flight assembly with its end journals, so the complete weldment is the replacement unit. Re-flighting it in the field is not how the part is designed to be serviced.
