Cylinder Liner (4G33-030003)

Cylinder Liner (4G33-030003). In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

Cylinder Liner 4G33-030003 for FM WORLD 6.0P

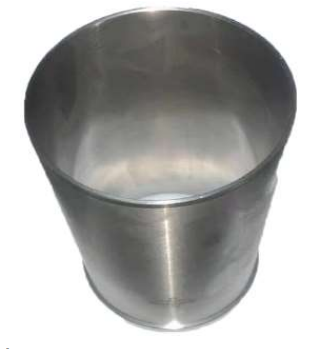

This is a removable cylinder liner for the 4G33TC engine in the FM WORLD 4LZ-6.0P, bore 100 mm, height 180 mm, weight 0.85 kg. It forms the cylindrical wall in which the piston and rings travel.

Specifications

Part number4G33-030003
TypeRemovable cylinder liner
Bore100 mm
Height180 mm
Weight0.85 kg
FitsFM WORLD 4LZ-6.0P (Ruilong), 4G33TC engine
Availabilityin stock, ready to ship

What this part does

The liner gives the piston rings a hard, round wall to seal against. Because it is a separate sleeve, a worn cylinder can be restored by replacing the liner rather than the whole block. Its inner surface is finished with a honed crosshatch that holds oil and lets new rings seat. Whether the liner is the wet or dry type and how it is sealed in the block are defined by the engine design and service manual.

Replaceable liner against the block bore

Some engines run the piston directly in the block. Here the removable sleeve carries the wear and can be pressed out and renewed, which protects the block and returns the cylinder to a true round bore.

Fitting notes

Clean the block seat thoroughly and fit any sealing rings in their correct positions, then press the liner in square. Check the liner protrusion and fit to the figure in the service manual and finish the bore with the correct honing pattern before fitting rings.

Before you fit it

Inspect the block seat and coolant passages for corrosion or damage before installing the liner. A poor seat causes movement or coolant leaks that a new liner cannot fix.

Signs this part needs replacing

  • A wear ridge at the top of the ring travel
  • Taper or out-of-round bore that lets compression leak
  • Glazed or scored wall causing high oil consumption
  • Blow-by and low compression from a worn cylinder

Compatibility and cross-reference

Where it fits

Cylinder block of the 4G33TC engine in the FM WORLD 4LZ-6.0P, forming the 100 mm cylinder wall.

Confirming the correct part

Confirm by part number 4G33-030003, the 100 mm bore, and the 180 mm height that matches the block.

Reading the old part

Measure the bore and height and check the machined outer seat. The 100 × 180 mm sleeve identifies the liner for this engine.

Frequently asked questions

Does a new liner need honing?

The bore needs the correct crosshatch finish so new rings can bed in and oil is held on the wall. Follow the service manual for the finish rather than fitting rings to a polished wall.

What is the difference between wet and dry liners?

A wet liner contacts the coolant and uses seals, while a dry liner presses into the block metal. The 4G33TC design determines which is used, and the fitting and sealing steps differ accordingly.
