Driven Bevel Gear 19 Teeth (Spline)

19-tooth driven bevel gear with spline bore. Part W2.5-02-03-01-03. In-stock replacement for the FM WORLD 4LZ-6.0P header and unloading drive.

Driven Bevel Gear 19 Teeth for the FM WORLD 6.0P

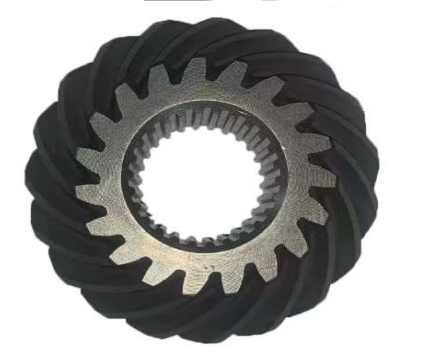

This is the driven bevel gear in the threshing drive, with 19 teeth, a 92 mm outside diameter, 32 mm bore, 30 mm height and a 26-spline mounting, weighing 0.9 kg. It turns the drive through a right angle, which is the defining job of a bevel gear.

Specifications

Part NumberW2.5-02-03-01-03
Part TypeDriven bevel gear
Outside Diameter92 mm
Bore32 mm
Height30 mm
Teeth19
Spline26
Weight0.9 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)
AvailabilityIn stock, ready to ship

What this part does

Bevel gears carry load on the conical faces of their teeth, and the contact is a sliding-rolling one, so the faces are where the wear appears: a dull or pitted surface first, then a growing whine as the backlash opens. This gear mounts on a spline rather than a single key, so the spline is the second wearing surface. A spline that has lost its fit lets the gear turn slightly on the shaft at every load change, and that play is heard as a knock rather than a whine. Bevel gears are normally run as a lapped pair, so the condition of the mating pinion matters as much as this gear.

19-tooth driven gear against the 20-tooth member

The mating gear has 20 teeth and a 20 mm bore; this one has 19 teeth, a 32 mm spline bore and a larger 92 mm diameter. The tooth counts and bores are not interchangeable, and a bevel gear with the wrong count changes both the speed and the contact pattern at this corner of the drive.

Fitting notes

Inspect the spline and the mating gear before fitting, and check the contact pattern with marking compound as the service manual describes rather than assuming the mesh is correct. Backlash and preload follow the manual, and the cavity is filled with the specified gear oil before the cover is closed. A new bevel gear run against a worn or scored pinion will wear to the old gear’s pattern.

Before you fit it

Replace the gear and its mating pinion together when the teeth are pitted or scored, because a single replacement in a lapped pair rarely carries a quiet contact pattern.

Signs it needs replacing

  • Pitting or scoring across the conical tooth faces
  • A whine that grows as the backlash opens
  • Knock at load changes from a worn spline
  • Oil in the housing carrying fine metal particles

Compatibility and cross reference

Models covered

The 19-tooth driven bevel gear in the threshing drive of the FM WORLD 4LZ-6.0P. The 20-tooth member is its mating gear and a separate part.

Confirming the right part

Confirm W2.5-02-03-01-03 on 19 teeth, 92 mm outside and the 32 mm spline bore. The 20-tooth gear has a 20 mm bore.

Reading the old part

Count the teeth and inspect the spline. Nineteen teeth and the splined bore identify this gear even when the number is worn off.

Questions we are asked about this part

Do I have to replace the mating gear at the same time?

Bevel gears are lapped together, so if the teeth are pitted, scored or worn, the pair should be replaced together. A single gear can be fitted only if the mating teeth are still clean and the contact pattern checks out.

How is a spline failure distinguished from tooth wear?

Tooth wear makes a steady whine; spline wear makes a knock each time the load changes. The spline and the teeth should both be inspected before ordering.
