Flywheel Bolt (N85-06006H)

Replacement part for FM WORLD 4LZ-6.0P. Verify fitment by part number N85-06006H and contact us for ordering support.

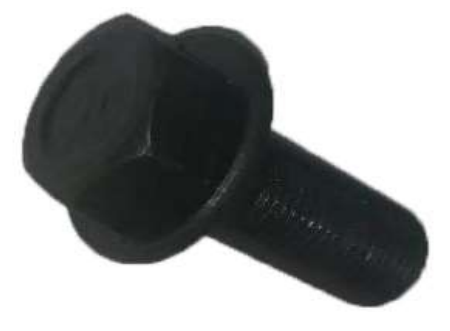

Flywheel Bolt N85-06006H (Upper 10 mm, Lower 25 mm, Height 45 mm)

The N85-06006H flywheel bolt has an upper diameter of 10 mm, lower diameter of 25 mm, height of 45 mm and mass of 0.04 kg, used in the flywheel mounting assembly.

Flywheel bolt data

Part numberN85-06006H
ComponentFlywheel bolt
Upper diameter10 mm
Lower diameter25 mm
Height45 mm
Mass0.04 kg

Securing the flywheel

The bolt clamps the flywheel to its mounting assembly, keeping the component located during engine rotation and load changes.

Bolt and high-pressure tubing

A bolt provides a clamped mechanical joint, while high-pressure tubing carries fuel between connected engine components. They are not interchangeable service parts.

Installing the flywheel bolt

Inspect the mating surface and thread before fitting. Install the bolt by hand first, then follow the service procedure for final tightening without adding an unlisted torque value.

After installation, check that the flywheel is seated evenly and that no bolt or washer contacts an adjacent rotating surface.

Why a flywheel bolt must be replaced carefully

  • Stretched or deformed bolt
  • Thread damage from cross-threading
  • Corrosion weakening the joint
  • Worn seating face
  • Looseness caused by incorrect installation
  • Loss of the correct washer or mating component

Checks before ordering

Mounting: Flywheel mounting on the FM WORLD 4LZ-6.0P engine assembly.

Confirmation: When ordering, identify N85-06006H and cross-check the 10 mm upper diameter, 25 mm lower diameter, 45 mm height and 0.04 kg mass.

Dimensions to match: Compare the thread, seating face, diameters and height with the removed bolt.

Engine assembly components

Flywheel bolt questions

Is the torque value included in the source data?

No. No torque value is provided here, so final tightening must follow the applicable service procedure.

Why should a stretched bolt not be reused?

A deformed bolt may no longer provide the required clamp load and can fail under engine vibration.

Identification of N85-06006H before ordering

Use this flywheel bolt when the original is damaged or specified for replacement; do not substitute a generic bolt without matching the complete dimensions and service requirements.
