Timing Idler Gear (4L88-040005A)

Timing Idler Gear (4L88-040005A). In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

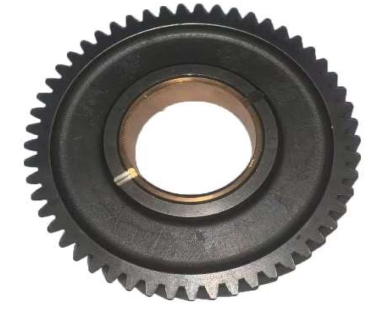

Timing Idler Gear 4L88-040005A for FM WORLD 6.0P

This is a timing idler gear for the engine in the FM WORLD 4LZ-6.0P, 53 teeth, 115 mm outer diameter, 45 mm bore, 22 mm wide with an 18 mm tooth face, weight 0.94 kg. It is the intermediate gear that passes rotation between the driving gears and the driven gears.

Specifications

Part number4L88-040005A
TypeTiming idler gear
Teeth53
Outer diameter115 mm
Bore45 mm
Width22 mm
Weight0.94 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)
Availabilityin stock, ready to ship

What this part does

An idler gear does not change the gear ratio; it bridges the distance between two gears and sets the direction of rotation so the crankshaft can drive the camshaft and pump gears at the correct positions. It turns on a fixed shaft or bushing and meshes with the gears on either side. Because it simply relays the drive, its tooth count does not alter the timing, but its alignment and the timing marks around it still have to be correct.

Idler gear against a driven gear

A driven gear turns a component such as the camshaft or pump. The idler is mounted on a fixed shaft and only transmits motion between gears, so it has no output part attached to it.

Fitting notes

Fit the idler on a clean shaft with its bushing or bearing lubricated and align the timing marks with the meshing gears before tightening. Check the gear backlash and free rotation against the service manual.

Before you fit it

Inspect the idler shaft and the meshing teeth for wear while the cover is off. A worn shaft lets the idler move and opens the backlash, producing noise and timing slack.

Signs this part needs replacing

  • Gear whine or rattle from the timing case
  • Pitted or worn teeth and increased backlash
  • Worn idler shaft or bushing allowing the gear to wobble
  • Timing slack that makes the engine noisy or slow to respond

Compatibility and cross-reference

Where it fits

Timing gear case of the engine in the FM WORLD 4LZ-6.0P, on the idler shaft.

Confirming the correct part

Confirm by part number 4L88-040005A, the 53 teeth, and the 45 mm bore that fits the idler shaft.

Reading the old part

Count the teeth and measure the bore and outer diameter. The 53-tooth, 115 mm idler identifies the gear.

Frequently asked questions

Does an idler gear change the gear ratio?

No. It only transmits rotation between gears, bridging the distance and reversing direction, so the ratio is set by the driving and driven gears.

Why do timing marks matter on an idler?

The idler sits in the marked timing chain, so aligning its marks keeps the camshaft and pump events in step with the piston even though the idler itself has no output.
