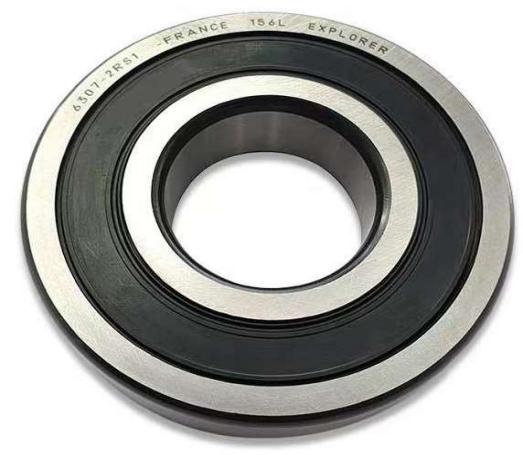

Bearing 6307-2RS (6307-2RS)

6307-2RS single-row deep groove ball bearing, rubber sealed on both sides. In-stock replacement for the FM WORLD 4LZ-4.0E. Order by part number; contact us for exact fitment.

Bearing 6307-2RS — 35 x 80 x 21 mm for FM WORLD 4LZ-4.0E Combine Harvester

The 6307-2RS carries a 35 mm shaft inside an 80 mm outside diameter with a 21 mm width and weighs 0.45 kg. It is one of the heavier sealed ball bearings on the FM WORLD 4LZ-4.0E, fitted to drive positions that combine a real radial load with the repeated shock of field work.

Specifications

Part number6307-2RS
Typesingle-row deep groove ball bearing, rubber sealed on both sides
Bore diameter35 mm
Outside diameter80 mm
Width21 mm
Weight0.45 kg
FitsFM WORLD 4LZ-4.0E Combine Harvester
AvailabilityIn stock, ready to ship

Bearing type and load capacity

The 63 family gives the largest ball set of any deep groove bearing at a given bore. At 35 mm that extra metal shows up as resistance to impact rather than as a higher speed limit, so this part is chosen for loaded shafts, not for the fastest free-running ones.

6307-2RS against the 6007 on the same 35 mm shaft

The 6007 is a thin-section bearing at 35 x 62 x 14 mm. Same journal, but the 6307 adds 18 mm of outside diameter and 7 mm of width and carries a far heavier load. The 62 mm housing for a 6007 cannot be made to take the 80 mm part; the two are selected by the housing bore rather than swapped by preference.

Fitting notes

Support the weight of the shaft while aligning a part this size, then fit the seals facing the dirty side. A cocked 80 mm ring will run hot within the first minutes even if it turns freely by hand.

Before you fit it

Shaft and housing

Before fitting, confirm the 80 mm housing bore is round and free of the fretting marks a loose old ring leaves behind. An out-of-round housing loads the new ring unevenly from the start.

Signs it needs replacing

  • Low thump felt through the frame when the drive is loaded
  • Outer ring fretting where it meets the housing
  • Hardened or cracked seal rubber after a hot season
  • Grease flung outward in a circle on the housing face

Compatibility and cross reference

Models covered

The sealed 6307 is listed for loaded 35 mm shafts on the FM WORLD 4LZ-4.0E.

Confirming the right part

Order by the old part number together with an 80 mm bore measurement. If the bore reads 62 mm the position is a 6007, not this bearing.

Questions we are asked about this part

Why does the same 35 mm shaft use both 6007 and 6307?

The position decides it: a light, narrow housing takes the 6007 at 62 mm outside diameter, while a loaded drive with an 80 mm bore takes the 6307.
