Belt Pulley, Impurity (W2.5K-02HB-11-05)

Part W2.5K-02HB-11-05. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

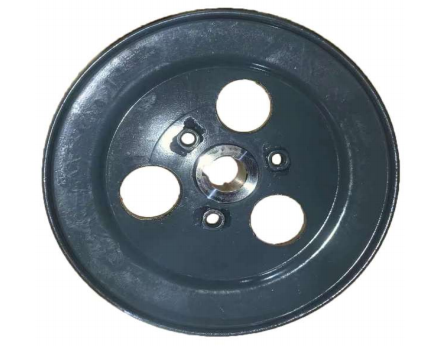

Impurity Belt Pulley (180 mm) for FM WORLD 4LZ-6.0P

Built for the impurity drive, this 180 mm pulley at 1.3 kg with a 20 mm bore and 40 mm width turns the belt that carries waste away.

Impurity pulley specifications

Drawing numberW2.5K-02HB-11-05
ComponentImpurity belt pulley
Envelope180 mm across
Bore20 mm
Width40 mm
Mass1.3 kg
MachineFM WORLD 4LZ-6.0P (Ruilong)

Driving the impurity belt

This pulley turns the belt that carries waste away and its groove must keep the belt moving without slipping.

Impurity versus main drive

Main threshing pulleys handle the grain drive, but this small one is dedicated to the waste belt; they serve different stations.

Mounting the impurity pulley

Locate the small impurity pulley on its shaft, push the key into the slot, and give it a spin to confirm the groove runs clean.

Once the waste belt is running, it should sit centered in the groove and not wander.

Signals it must be replaced

  • Groove no longer grips the waste belt
  • Hub bore turned loose on the shaft
  • Frame split near the hub
  • Key seat worn by movement
  • Belt thrown during threshing
  • Rust patches breaking the surface

Ordering checks

Mounting: Impurity pulley of FM WORLD 4LZ-6.0P (Ruilong) harvesters.

Confirmation: Pass along the impurity drawing number and the 180 mm outer diameter.

Dimensions to match: Verify the 20 mm hub bore matches the pulley you took off.

Auxiliary and other threshing pulleys

Impurity pulley FAQ

What belt does it turn?

It turns the belt that carries waste away.

What is the hub bore?

20 mm.

Identification of W2.5K-02HB-11-05 before ordering

Install this impurity pulley where the groove is worn, the hub bore loose or the frame split; do not discard a pulley that is still good.
