Belt Pulley (W3.5H-02HA-12-02)

Part W3.5H-02HA-12-02. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

Belt Pulley (120 mm) for FM WORLD 4LZ-6.0P

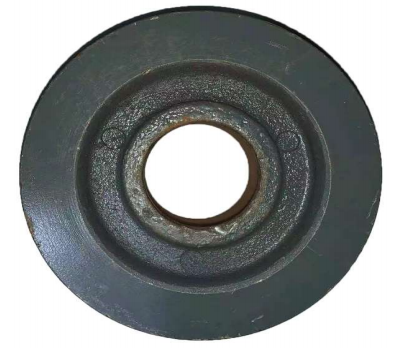

At 120 mm across and 1.8 kg, this pulley with a 46 mm bore and 60 mm height turns a secondary belt on the threshing system.

Small pulley reference

Drawing numberW3.5H-02HA-12-02
ComponentBelt pulley
Envelope120 mm across
Bore46 mm
Height60 mm
Mass1.8 kg
MachineFM WORLD 4LZ-6.0P (Ruilong)

Turning the secondary belt

As the smaller member, it turns the secondary belt and its groove must grip the belt firmly.

Small versus large pulley

The large pulleys carry the main drive, while this small one turns a secondary belt; the diameters differ.

Fitting the small pulley

Rest the 120 mm pulley on the shaft, tap the key gently into place, and rotate it by hand before tightening anything.

Under load the small belt ought to run quietly, with no flutter against the pulley edges.

Why a replacement is needed

  • Belt channel worn into a cup
  • Shaft hole enlarged and sloppy
  • Body cracked across a spoke
  • Drive slot rounded by the key
  • Belt fluttering at speed
  • Surface rust on the faces

Verify before ordering

Mounting: Smaller threshing pulley of FM WORLD 4LZ-6.0P (Ruilong) harvesters.

Confirmation: Share the small pulley drawing number and its 120 mm envelope.

Dimensions to match: Confirm the 46 mm shaft hole against the original.

Auxiliary and welded pulleys

  • Part 2319
  • Questions about this pulley

    What belt does it turn?

    It turns a secondary belt on the threshing system.

    What is the shaft hole?

    46 mm.

    Identification of W3.5H-02HA-12-02 before ordering

    Order the small pulley for a worn belt channel, loose shaft hole or cracked body; a healthy pulley should remain in service.
