Gear III (ZKB60-302a-004)

Gear III for the ZKB85 gearbox. Part ZKB60-302a-004. In-stock replacement for the FM WORLD 4LZ-6.0P (ZKB85) gearbox.

Gear III (ZKB60-302a-004) in the FM WORLD 6.0P gearbox

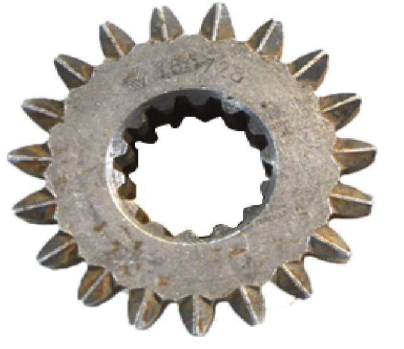

Gear III sits on the third-speed position of the ZKB85 gearbox used on the FM WORLD 4LZ-6.0P. The listing describes it as a 19-tooth gear, 70 mm across the outside, 31 mm bore, 35 mm tall, with a 20 mm tooth width, and 0.5 kg of steel.

Specifications

Part NumberZKB60-302a-004
Part TypeGear III (third-speed gear)
Bore31 mm
Outside Diameter70 mm
Height35 mm
Teeth19
Tooth Width20 mm
Weight0.5 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)
AvailabilityIn stock, ready to ship

What this part does

Third gear is the one that spends the most time under load in a rice field. The gear meshes with its counter-shaft partner and carries engine torque through to the final drive, so its teeth see continuous load rather than the short bursts of a shift. The engagement end is different: it is the internal teeth there that lock the gear to the shaft when third is selected, and they take the shock every time the operator shifts under load.

A gear that is worn on the teeth and one worn at the engagement

These two failures feel different in the field. Tooth-flank wear shows up as noise that grows with load and a whine that was not there last season, because the contact patch has moved and the mesh is no longer quiet. Engagement wear shows up as the machine dropping out of third on its own when the load rises, since the internal teeth no longer hold the sliding engagement square. A gear can be quiet and still jump out, or hold gear and still howl.

Fitting notes

Drain the gearbox before the cover comes off and work on a clean bench, because the internals of this box are small and grit is the main enemy. Check the counter-shaft partner and the engagement on the shaft as well as the new gear: a new gear against a worn partner will wear twice as fast. Preload, end float and the oil level after refill all follow the service manual for this gearbox; we do not publish figures for them.

Before you fit it

Look at the counter-shaft gear and the shaft engagement before fitting the new gear. If either is worn, replacing the gear alone leaves the same misalignment that damaged it.

Signs it needs replacing

  • Whine or growl that rises with load at working speed
  • Machine drops out of third by itself under load
  • Tooth flanks polished bright, stepped, or pitted near the pitch line
  • Internal engagement teeth rounded or chipped at the ends

Compatibility and cross reference

Models covered

Third-speed position in the ZKB85 gearbox fitted to the FM WORLD 4LZ-6.0P (Ruilong). Part number ZKB60-302a-004 — check it against the old gear before ordering.

Confirming the right part

Confirm ZKB60-302a-004 on 19 teeth, 70 mm outside, 31 mm bore and 35 mm height together. A gear with the right tooth count and the wrong bore will not seat.

Reading the old part

The number is stamped on the gear face between two teeth, and it is often faint after a rebuild. Count 19 teeth and measure 70 mm across before trusting the stamping.

Questions we are asked about this part

Does a 19-tooth count alone confirm this gear?

No. Count 19 teeth, but also check 70 mm outside, 31 mm bore and 35 mm height. A gear with the right tooth count and the wrong bore will not seat on the shaft.

Can I replace only the worn gear and keep its partner?

Only if the partner is still sound. A pair that has run together wears into each other; fitting one new half against a worn half usually produces noise and a short second life.

Related parts
