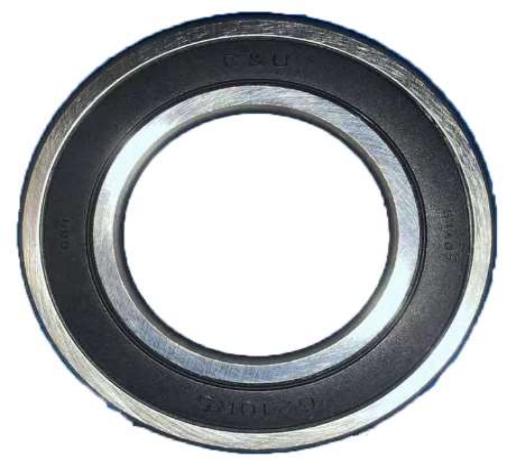

Bearing 6210-2RS

6210-2RS single-row deep groove ball bearing, rubber sealed on both sides. 50 mm bore, 90 mm outside diameter, 20 mm width, 0.45 kg. Replacement for the FM WORLD 4LZ-4.0E / 4LZ-6.0P (Ruilong) combine harvester. In stock, ready to ship.

Bearing 6210-2RS — 50 x 90 x 20 mm for FM WORLD 4LZ-4.0E / 4LZ-6.0P (Ruilong)

The 6210-2RS is a 50 mm-bore bearing, 90 mm outside diameter and 20 mm wide, sealed on both sides. A 50 mm shaft is one of the larger shafts on the FM WORLD 4LZ-4.0E and 4LZ-6.0P, so this part usually sits on a main drive or a major pulley shaft.

Specifications

Part number6210-2RS
Typesingle-row deep groove ball bearing, rubber sealed on both sides
Bore diameter50 mm
Outside diameter90 mm
Width20 mm
Weight0.45 kg
FitsFM WORLD 4LZ-4.0E / 4LZ-6.0P (Ruilong)
AvailabilityIn stock, ready to ship

Bearing type and load capacity

The 62 series balances size and capacity: enough outside diameter to carry a real load on a 50 mm shaft, without the bulk of the 63 series. Sealed both sides, it holds its grease for life and tolerates the dust that collects around a main drive.

6210-2RS against the 6310 on the same 50 mm shaft

The 6310 measures 50 x 110 x 27 mm. Same bore, 20 mm more outside diameter and 7 mm more width, and a much higher load rating. On a 90 mm housing bore the 6210 is the correct part; the 6310 will not go in.

Fitting notes

On a shaft this size, support the shaft so its weight does not load the raceway while the bearing is being aligned. Fit the seals facing the dirt side.

Before you fit it

Shaft and housing

With a 50 mm journal and a 90 mm ring, support the shaft during assembly so its weight does not load the raceway while you line the part up.

Signs it needs replacing

  • Low-frequency rumble felt through the frame more than heard
  • Grease weeping from the seal on the loaded side
  • Visible fretting marks where the outer ring meets the housing
  • Vibration that grows with engine speed

Compatibility and cross reference

Models covered

Fitted to both the 4LZ-4.0E and the 4LZ-6.0P, on the larger shaft positions of those machines.

Confirming the right part

Measure the 90 mm bore and read the old number. A 110 mm bore means a 6310 is fitted, which this bearing cannot replace.

Questions we are asked about this bearing

Does a 50 mm bore bearing this size need a press?

A tight fit should be heated, not forced. Pressing a 90 mm ring cold risks distortion that shows up as heat within minutes of running.
