Needle Bearing (25x33x30)

25x33x30 needle roller bearing, long thin rollers in a narrow section. In-stock replacement for the FM WORLD 4LZ-4.0E. Order by part number; contact us for exact fitment.

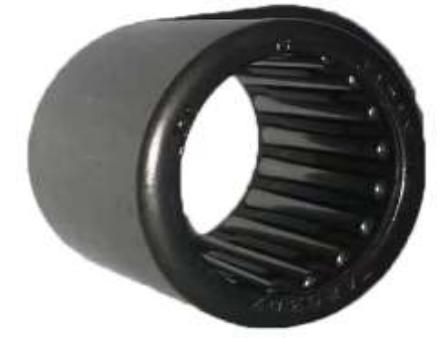

Needle Bearing 25x33x30 — 25 x 33 x 30 mm for FM WORLD 4LZ-4.0E Combine Harvester

The needle bearing fits a 25 mm shaft inside a 33 mm outside diameter over a 30 mm width. The wall section is only 4 mm, yet the long rollers carry a substantial radial load, which is why the FM WORLD 4LZ-4.0E uses it in the tight space of the HST output assembly.

Specifications

Part number25x33x30
Typeneedle roller bearing, long thin rollers in a narrow section
Bore diameter25 mm
Outside diameter33 mm
Width30 mm
Weight0.15 kg
FitsFM WORLD 4LZ-4.0E Combine Harvester
AvailabilityIn stock, ready to ship

Bearing type and load capacity

Needle rollers are far longer relative to their diameter than ordinary cylindrical rollers. That packs a large roller contact area into a very small envelope, giving high radial capacity where there is no room for a ball bearing’s wider ring, while offering little capacity for axial load.

Needle bearing against a ball bearing on the same 25 mm shaft

A 25 mm ball bearing such as a 6305 needs a 62 mm outside diameter, nearly double this part’s 33 mm. In the HST housing that space simply does not exist, so the needle bearing is specified for its small section, not as a cheaper equivalent. It must not be replaced by a ball bearing without redesigning the housing, and it cannot take the axial locating a ball bearing provides.

Fitting notes

Keep the narrow bore and the rollers clean during fitting and confirm the lubrication path is open. A needle bearing depends on a thin oil film; dry assembly in a 4 mm section scuffs the rollers almost immediately.

Before you fit it

Shaft and housing

Inspect the 25 mm journal and the 33 mm seat for scoring before fitting. The narrow rollers cannot tolerate a rough journal or a blocked oil feed.

Signs it needs replacing

  • Fluting or skid marks along the rollers from lost oil film
  • A cage that binds or lets the rollers contact each other
  • Rough rotation felt as the shaft is turned slowly under load
  • Metallic fines in the HST oil after the bearing begins to shed

Compatibility and cross reference

Models covered

This needle bearing is listed for the HST output assembly on the FM WORLD 4LZ-4.0E.

Confirming the right part

Match the part number and the 25 x 33 x 30 mm envelope. The 33 mm outside diameter and the HST housing identify this needle bearing.

Questions we are asked about this part

Why not fit a normal ball bearing in this position?

The HST bore allows only 33 mm outside diameter, while a 25 mm ball bearing needs far more. The needle bearing is the only type that delivers the radial load in that section.
