Camshaft (4G33V16-070001B)

Camshaft (4G33V16-070001B). In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

Camshaft 4G33V16-070001B for FM WORLD 6.0P

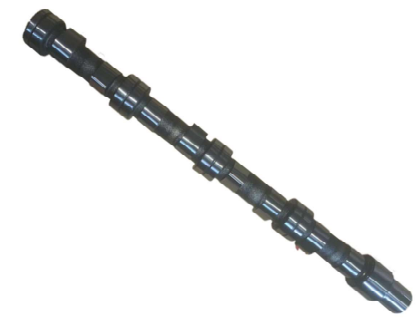

This is the camshaft for the engine in the FM WORLD 4LZ-6.0P, 490 mm long with 45 mm bearing journals, weight 4 kg. It carries the lobes that open the intake and exhaust valves at the correct time.

Specifications

Part number4G33V16-070001B
TypeCamshaft
Length490 mm
Bearing journals45 mm
Weight4 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)
Availabilityin stock, ready to ship

What this part does

Each eccentric lobe is shaped to lift a valve lifter and open a valve as the shaft turns, then let the valve spring close it. The camshaft is timed to the crankshaft and turns at half speed on a four-stroke engine, so every valve opens once for every two crankshaft revolutions. The journals rotate in plain bearings on pressurised oil, and a thrust face limits the shaft’s end play. The lobe profile sets how long and how far each valve opens, which governs breathing and power.

Camshaft against the crankshaft

The crankshaft converts the piston motion into rotation and runs at engine speed; the camshaft is the timed shaft that operates the valves and runs at half speed. They are linked by the timing gear train.

Fitting notes

Install the shaft on clean, lubricated bearings and align the timing gear marks with the crankshaft before fitting the cover. Check the journal clearance, end play, and valve timing against the service manual.

Before you fit it

Inspect the lobes and journals for scoring or a worn, polished surface and check the thrust face. Worn lobes reduce valve lift and the lifters should be checked together with the cam.

Signs this part needs replacing

  • Loss of power and a hard start from worn lobes or drifted timing
  • Tapping from the valve train and increased lash
  • Scored journals or a worn thrust face
  • Rough running from altered valve timing

Compatibility and cross-reference

Where it fits

Cylinder block of the engine in the FM WORLD 4LZ-6.0P, driven by the timing gear train.

Confirming the correct part

Confirm by part number 4G33V16-070001B, the 490 mm length, and the 45 mm journals that fit the block bearings.

Reading the old part

Count and inspect the lobes and measure the journals. The 490 mm camshaft with 45 mm journals identifies the part.

Frequently asked questions

Why does the camshaft turn at half speed?

On a four-stroke engine each valve only opens once every two crankshaft revolutions, so the timing gears drive the camshaft at half the crankshaft speed.

What does a worn cam lobe do?

It reduces how far the valve opens and changes its timing, causing weak power and noise. The lifters riding the worn lobes should be inspected at the same time.
