Tension Arm Weld (W3.5-01AC-01-04-08-01-00)

Part W3.5-01AC-01-04-08-01-00. In stock for FM WORLD 4LZ-6.0P. Order by part number, contact us for fitment help.

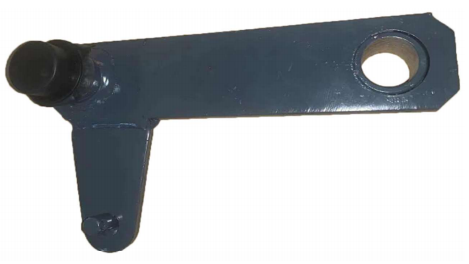

Welded Tension Arm (20 mm Bore) for FM WORLD 4LZ-6.0P Header

This small welded arm pivots on a 20 mm bore and carries the idler that tensions the header belt, 175 x 105 x 60 mm and 0.65 kg.

Arm dimensions

Part numberW3.5-01AC-01-04-08-01-00
Part typeWelded tension arm
Dimensions175 x 105 x 60 mm
Pivot bore20 mm
Weight0.65 kg
FitsFM WORLD 4LZ-6.0P (Ruilong)

How the arm applies tension

The arm is a lever: it pivots on the 20 mm bore and pushes the idler against the belt, so the geometry of the arm keeps the belt tension even as it stretches.

The 20 mm pivot bore

The 20 mm bore is the smallest among the tension arms and identifies this header part; the larger threshing arms use a 52 mm bore or different mountings.

Fitting the arm

Grease the pivot and seat the arm, then fit the idler and confirm the arm moves through its full travel without a hard spot.

Set the belt tension after fitting and check the arm returns and holds, with the idler square on the belt.

Replacement signs

  • A pivot bore worn oval that lets tension fade
  • A cracked weld on the lever
  • A bent arm that holds the idler off square
  • Belt flutter that adjustment cannot cure
  • Slack or rattling at the pivot
  • Corrosion around the bore

Ordering details

Mounting: Header belt tensioner on FM WORLD 4LZ-6.0P (Ruilong) combine harvesters.

Confirmation: Quote the part number and the 20 mm bore and the 175 mm arm size.

Dimensions to match: Check the dimensions, bore and idler mounting against your removed arm.

Other tension arms

  • Part 2310
  • Part 2323
  • Part 2334
  • Part 2344
  • Buyer questions

    Does the arm include the idler pulley?

    No, the arm is the welded lever; the idler it carries is a separate part.

    What causes the tension to keep dropping?

    Often an oval pivot bore or a weak arm; check the 20 mm bore for play before replacing the belt.

    Identification of W3.5-01AC-01-04-08-01-00 before ordering

    Replace this arm when the bore is oval, the weld cracks or it bends; a sound arm that holds even tension can stay.
